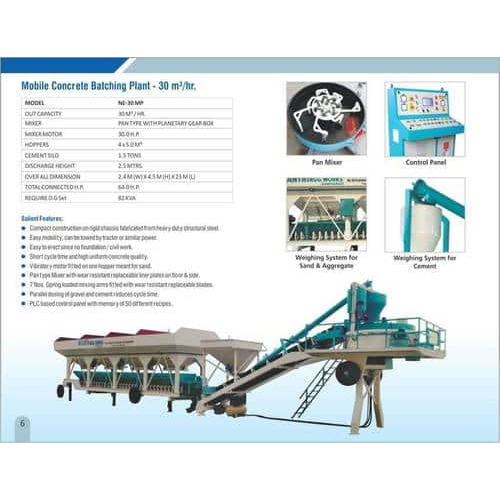

Concrete Batch Mix Plant

Concrete Batch Mix Plant
Concrete Batch Mix Plant
Product Code : NE-30
Brand Name : NILKANTH
Product Description

Our proficiency in this domain enables us to manufacture, export and supply a broad assortment of Concrete Batch Mix Plant. The offered plant is assembled precisely under the stern guidance of our dedicated professionals by utilizing the finest grade components with the aid of pioneering techniques. This plant is well suited for forming or mixing construction materials in the formation of concrete. Also, the provided Concrete Batch Mix Plant is available at industry leading prices.

Features:

  • Low power consumption
  • Negligible maintenance
  • High speed operation
  • No noise generation

Concrete Batch Mix Plant:

The plant comprises of adequate capacity gravel & sand hoppers, weighing conveyor suspended on electronic load cells, Pan type mixer unit, additive tank. cement silo with screw conveyor, Rubber belt type charging conveyor, PLC based control panel.


Salient Features:

Fully automatic plant with mix material output capacity of 30 m3/hr.Easy mobility (Two Chassis); can be towed by tractor or similar power.Easy to erect since no foundation / civil work.Short cycle time and high uniform concrete quality.Two nos. twin hoppers i.e. total 4 nos. hoppers (2 x 2) for storage of gravels & sand.Each hopper storage capacity is 2.5 m3 and is fitted with pneumatically operated gates.Integral weighing conveyor is suspended on 4 nos. electronic load cells for weighing of gravel & sand. Vibratory motor is fitted on one hopper meant for sand.Rubber belt type charging conveyor transfers the weighed gravels (aggregates) and sand from the weighing conveyor beneath the hoppers to the Pan Mixer unit.Pan type Mixer unit of 0.75 m3 capacity fabricated from heavy duty steel is having 10 mm thick wear resistant replaceable liner plate.Spring loaded paddle mixer arms with replaceable blades.The mixing arms driven by Imported Planetary Gear Box coupled with 30 HP motor.Inbuilt Additive tank with self priming pump.Cement Silo of 1.5 tons storage capacity with screw conveyor for transferring the cement to Pan Mixer unit.Separate weighing arrangement with electronic load cells for cement parallel to gravel & sand weighing reduces the cycle time; thus increasing the concrete mix output.Control Cabin with PLC based control panel capable of storing 50 different recipes.Total connected Electric load 64.0 H.P.

TECHNICAL SPECIFICATION:

MODEL

30MP

OUT CAPACITY

30M3 / HP

HOPPERS

4.50M3

DISCHARGE HEIGHT

2.5

OVERALL DIMENSION

2.4M(W)4.5M(W)2.0M(W)

TOTAL CONNECTION H.P.

64.0H.P.
