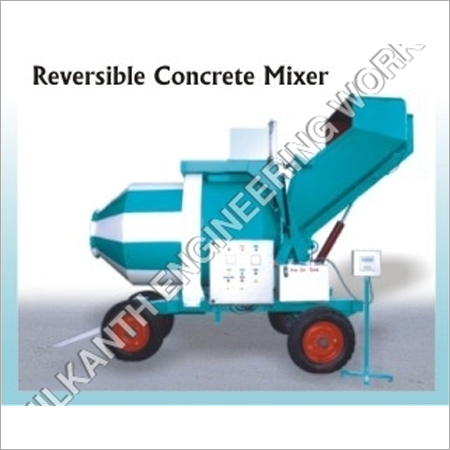

Reversible Concrete Mixer

Reversible Concrete Mixer

Reversible concrete mixer, Reversible Drum Mixer are strong well-engineered piece of construction equipment which is meant for carrying mixing mortar from batch plant directly to the place where it is to be poured. It has a wide range of applications specially used in construction of canals, bridges, highways, dams, multi storied & industrial buildings, factories and for ready mixed concrete works.

Technical Specification

Description	NE-400
Concrete Output	8 m3/hr
Mixer Batch Capacity	0.4m3
Weighing Scale	Electronic-Digital Display
Aggregate & Cement	2 Nos. of Electronic Load Cell
Water	Water Flow Meter

Power Requirement
Mixer	10 hp
Water Pump	01 hp
Tyres
Nos of Pneumatic Tyres	4 Nos.
Tyre Size	06-16,8 PR
Mechanical Jack	4 Nos.

Features

·   Reversible Mixer drum is rotating on well align heavy duty gear ring guided   by three roller for smooth rotation.

·   Compact design for easy transportation.

·   Ascent & Decent of loading skip bucket is controlled by hydraulic pump

·   Rotation of the concrete drum, reversed is auctioned by push on the electric control panel.

·   The machine design rationalized for easily manor able mixer requiring very less maintenance.

·   Mixer only requires Electric Power Supply, Water Piping, Agg/ Sand Feeding.

·   Mixer operation is very silent & with clean surrounding.
